Solutions for electro-static discharge

Permanent  ESD Compound Concentrate For LLDPE 100H AN

Features
Is immediately functional and imparts long-term antistatic effect.
Exhibits low influence of relative humidity on the antistatic performance.
Is not migrating of ESD compound.
Can be used for both anti-dust and preventing electrostatic discharge application.
Can maintain mechanical properties of the polymer.
Can easily be processed by extrusion and injection molding.
Provides odorless molded article.

Applications
Resins such as LLDPE,HDPE and LDPE
Home appliances such as air conditioners and vacuum cleaners
Parts of business machines such as printer trays and paper sorters
Conveyance materials for sensitive electric chips and devices (tray and case)

Physical and chemical properties

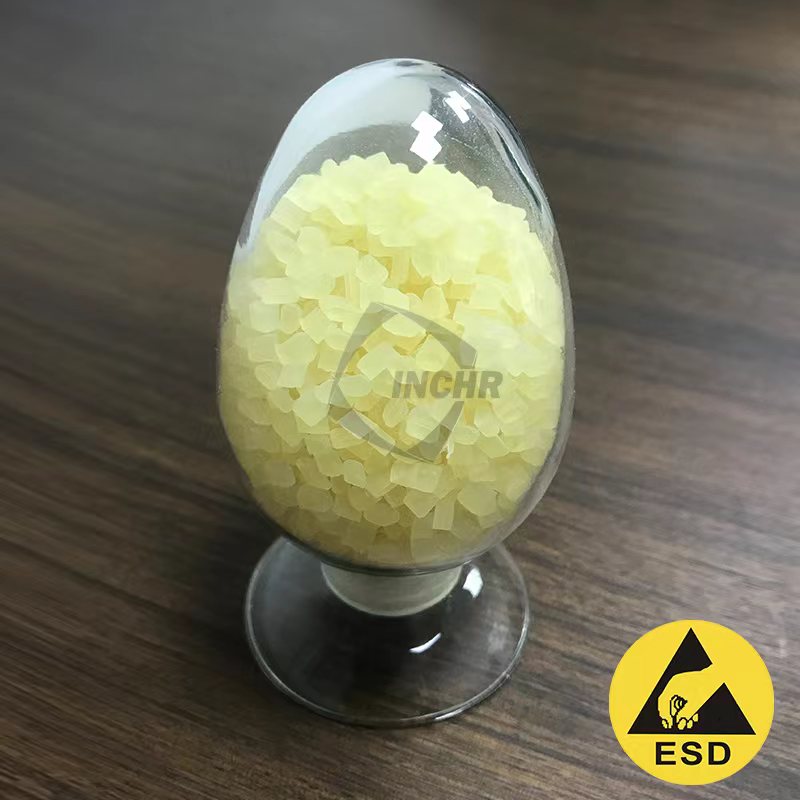

Appearance Pale yellow pellet
Melting point 130℃
Thermal stability (TGA, 10℃/min, N2  200ml /min) 1% weight loss temperature：over 260℃

Performance

The antistatic masterbatch can control the surface resistivity of ABS from 10^8 to 10^12 ohms.This ESD compound could achieve with loading level at approx.10 wt% for anti-dust application and at approx.20 wt% for ESD application.

Handling and storage

This ESD compound is very hygroscopic substance which is dried before shipping. Store in the original container securely under cool and dry conditions. After opening, use immediately.
Keep closed when not in use. In case of that this product absorbs moisture, drying at 85 ºC for 3 h under vacuum is required before use.
Protective clothing should be worn when operators are handling, or being exposed to.

INCHR also provides conductive PP compound, conductive PS compound, conductive PE compound, and conductive PET compound for ESD protection. For more information, please contact our technician via mailbox mike@inchr-esd.com or visit www.inchr-esd.com.
